Fully Automatic Stainless Steel Jacket Crystallizer

  • Fully Automatic Stainless Steel Jacket Crystallizer
  • Fully Automatic Stainless Steel Jacket Crystallizer
  • Fully Automatic Stainless Steel Jacket Crystallizer
  • Fully Automatic Stainless Steel Jacket Crystallizer

Fully Automatic Stainless Steel Jacket Crystallizer

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Packaging: Wooden pallets/ Cartons/Plastic stretch-wrap
    Brand: Zhang
    Transportation: Ocean
    Place of Origin: Jiangsu Wuxi
    Supply Ability: 150/Year
    Certificate: CE
    Port: Shanghai

Product Description

W-Shape Crystallizer

Crystallization tank is used in pharmaceutical, fine chemical, biological engineering and other industries, the tank can be equipped with jacket, coil, heat preservation (can be heated, cooled, temperature).The equipment is made of materials such as 304, 316L, titanium, Hartshorn alloy and PTFE lining. The inner wall of the tank is treated by mirror polishing. The fully enclosed design ensures that the material is always operated in a pollution-free state.

Equipment configuration:View mirror, agitator, feed inlet, tank washer, respirator, liquid medicine inlet, injection water inlet, return water inlet, steam inlet, condensate outlet, cooling water inlet, outlet, material outlet, sewage outlet, sampling outlet, liquid level device

Crystallization Tank


Crystallizer

Summary

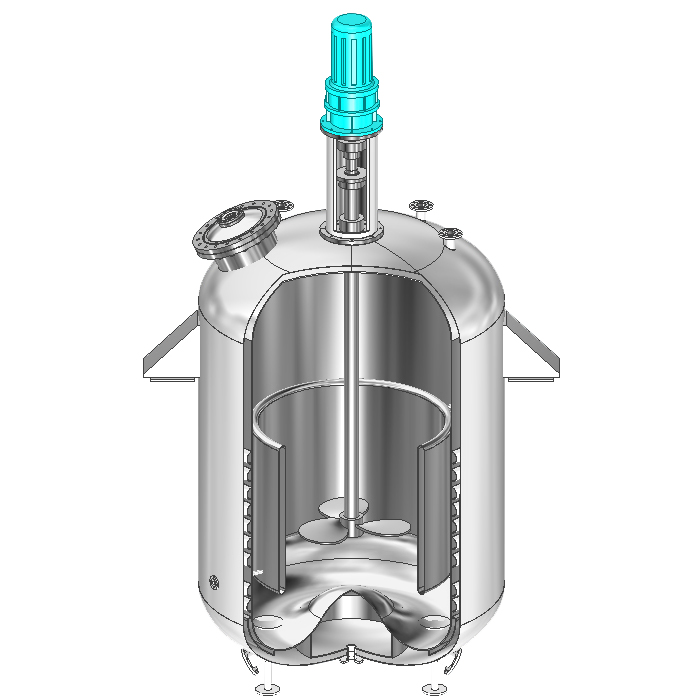

In order to improve the inside structure of traditional crystallization tank, the standard oval head is replaced by the W-shaped head in the design. The combination of W-shaped head and the Air Cylinder changes internal flow flied forms, and realizes good diversion effect, ensure that materials are fully mixed, avoid local too high solute saturation generated that causes bad influence on crystallizing effect, and the air cylinder structure is additionally provided in the tank. Temperature control of the materials in the tank is realized through the hot fluid passing the air cylinder and jacket, instead of temperature control only by the jacket in the traditional crystallization tank. This kind of joint control from inside and outside effectively ensures uniformity of material temperature and improves the crystallizing effect. The combination of W-shaped head and the air cylinderchanges internal flow flied forms, and realizes good diversion effect, ensure that materials are fully mixed, avoid local too high solute saturation generated that causes bad influence on crystallizing effect. Meanwhile, the even flow field can obviously improve the change of load carried by the blades, so the risk of damaging the mixing shaft is effectively reduced and the final crystal form is more uniform.

High Efficiency & Energy Saving Crystallizer

Insulation and Cooling Crystallizing Tank
Technology Parameters
Specification
(L)
Diameter
(mm)
High
(mm)
Pressure in the tank
(MPa)
Pressure in the jacket (MPa)
Motor power
(kw)
Rotation speed of blending
100
400
2000
0.2
0.3
0.55
50-120
200
500
2330
0.2
0.3
0.75
50-120
500
700
2650
0.2
0.3
1.1
50-120
...
...
...
...
...
...
...
20000
2300
2900
0.2

30
50-120
Design / Calculation Softwareware
Custom Service
➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer /Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
Company Profile

WUXI ZHANGHUA PHARMACEUTICAL EQUIPMENT CO., LTD.

 Wuxi Zhanghua Pharmaceutical Equipment Co. Ltd. was founded in 1976, committed to researching, developing and manufacturing reaction, crystallization, filtration, drying equipment. With the development of the leading technologies for 44 years, our engineering equipment is not only for the pharmaceutical industry, but also for fine chemicals, pesticides, new energy, new materials and other industries. We customize the integrated solution of reaction, crystallization, filtration and drying process equipment for clients.
Our technical team is composed of quality assurance engineers, process engineers, equipment engineers, welding engineers and electrical engineers, and most of them have working experience and engineering project experience for over ten years.
For inflammable, explosive, toxic and corrosive products in pharmaceutical, fine chemical, pesticide and new energy industries, we customize the technology and equipment solution and provide high airtight, high vacuum, fully automatic equipment for clients, to ensure safety, energy conservation and environmental protection of the production process, and compliance with EHS requirements. In addition, we will optimize technology designs for users in order to produce high quality products.
All of our equipment has met FDA and CGMP requirements, ATEX explosion-proof instruction requirements and ASME requirements, and has got PED, MD, LVD certification as well.
The equipment has been exported to several pharmaceutical and chemical enterprises in Asia and Europe, so our engineers in after-sale service department have rich experience abroad.
Wuxi Zhanghua is adhering to the spirit of professionalism, credibility, integrity, innovation and harmony, committed to becoming an advanced international company with high technology and high quality trusted by all the clients. Zhanghua has more than ten intellectual property rights, including patents, software copyright and etc., all of which helps it to keep its excellent sustainability and creativity in the industry. With years of unceasing efforts, Zhanghua has made considerable progress in reaction, crystallization, filtration and drying technology on the equipment, and has established a good image in the field of pharmaceutical and chemical industry.
